Facilities at inovit solution

Vertical Turning Machine up to Dia 830mm

Travel distance :
X-axis :495(-80~415) mm
(19.5(-3.1~16.3) inch)
Z-axis :780 mm (30.7 inch)
Maximum turning diameter :
830 mm (32.7 inch)
Maximum turning height :
750 mm ( 29.5 inch)
Maximum working  swing :
850 mm (33.5 inch)

Bridge port V320

  • 5-axis machining center with simultaneous 4 axis operation
  • 10K, 12K, 15K RPM
  • 2 axis trunnion table diameter: 12.60” (320 mm)
  • 30 tool servo driven ATC
  • 2 axis trunnion table diameter: 12.60” (320 mm)

MACHINE TRAVEL

X-axis
20.08”
(510mm)
y-axis
24.01”
(610mm)
z-axis
20.08”
(510mm)
A-axis
+30°~ -120°C-axis
360° (cont.)

Vista-2000

Stroke mm(inch)

X-axis
2000
(78.74)
y-axis
850
(33.46)
z-axis
800
(31.49)

Rapid Speed m/min(ipm)

X-axis
24
(945)
y-axis
24
(945)
z-axis
24
(945)

JYOTI VMC 850nuv

  • High dynamics structure and high acceleration upto 5m/sec2.
  • High performance 10000rpm BT-40 ceramic bearing spindle for DM-version
  • High Torque & High Power spindle motor for P-version
  • 90° tilting operator panel.

Size mm(inch)

X-axis : 850mm
y-axis : 500mm
z-axis : 500mm

cmm-Coordinate Measuring machine up to 2000mm

CONTURA G2
RDS Provides +_ 180 degree
swivel range of motion.
Conventional indexing has a
130gedree inaccessible zone.
Z Clearance- 600 mm.

Size mm(inch)

X-axis : 2000mm
y-axis : 1000mm
z-axis : 900mm

PUMA VTL 900M(Vertical turning lathe with milling option)

Capacity
Max. turning diameter mm (inch) : 900 (35.4)
Max turning length mm (inch) : 801 (31.5)
Chuck size mm : 800 (32)

Travels
Travel distance (X / Z) mm (inch) : 470 / 850 (18.5 / 33.5)
Rapid traverse (X / Z) m/min (ipm) : 20 / 20 (787.4 / 787.4)

Spindle
Spindle speed r/min : 1800
Spindle motor power kW (Hp): 45(60.3) [30min.]Spindle bearing diameter mm (inch) : 200 (7.9)

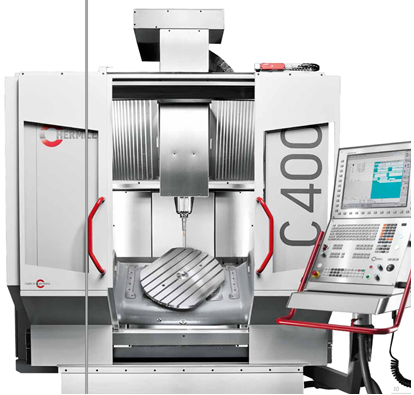

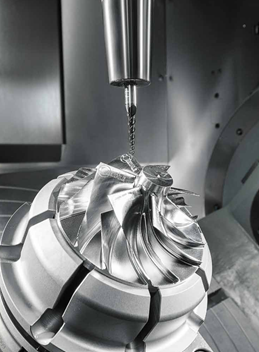

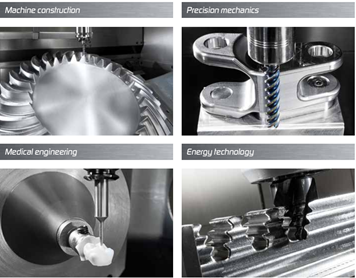

hermle High precision simultaneous 5 axis machine

Traverse
X- axis : 850
Y-axis : 700
Z-axis : 500

Rapid linear traverses : X-Y-Z  35 – 35 – 35 m/min
linear acceleration :X-Y-Z   6 m/s2
Linear feed fource : 7000 N

Maximum vertical table clearance : 625 mm
Maximum workpiece diameter: 850 mm
Maximum workpiece height: 500 mm
